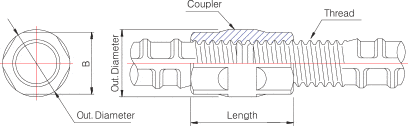

Coupler Size
“Available in Standard Coating, Hot Dipped Galvanised or Stainless steel”
Metric
| BS.4449 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NOMINAL BAR SIZE (Ømm) | |||||||||
| COUPLER DIAMETER (mm) | |||||||||
| HEXAGON-B (mm) | |||||||||
| COUPLER LENGTH | |||||||||
Imperial
| ASTM A615/A 615M | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BAR DESIGNATION (#) | 3(10) | 4(13) | 5(16) | 6(19) | 7(22) | 8(25) | 9(29) | 10(32) | 11(36) | 14(43) | 18(57) |
| COUPLER DIAMETER (mm) | 18 | 20 | 24 | 28 | 32 | 38 | 42 | 48 | 55 | 65 | 85 |
| COUPLER LENGTH | 22 | 30 | 38 | 45 | 50 | 58 | 65 | 70 | 78 | 95 | 125 |
Contact Cage BMS for more information
