DOUBLE HEADED STUDS
- Manufactured from grade 500PMa ribbed reinforcing bar
- Reinforcing steel in accordance with AS4671 – “Steel Reinforcing Materials”
- Available in 4 different bar thicknesses – 12mm, 16mm, 20mm and 24mm.
- Head diameter is 3 times the diameter of the bar thickness.
- Design of the studs are in accordance with EAD 160003-00-0301 as published by the European Organisation of Technical Assessment (EOTA).
STEEL RAIL
- Manufactured from grade 300 plus flat steel.
- Flat steel in accordance with AS3679.1 – “Hot Rolled structural Steel Bars”.
TYPICAL ARRANGEMENTS
Suitable for all column shapes and locations. Shown below are some typical arrangements.

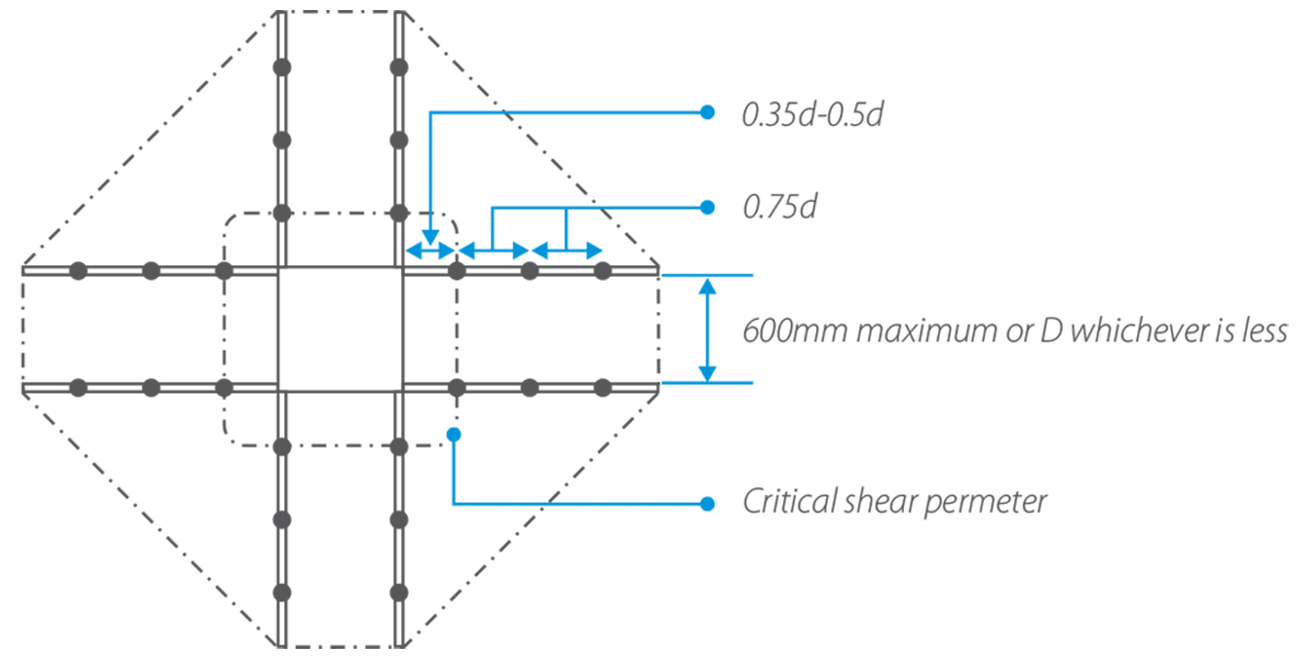

STUD RAIL POSITIONING
- The studs of the first row are placed at a distance from the column face between 0.35d and 0.5d.
- The spacing of each stud on the rail is less than or equal to 0.75d.
- Each stud rail shall be place maximum 600mm or D whichever is less.
- Bottom Installation: Assembly profile is below the lower reinforcement layer.

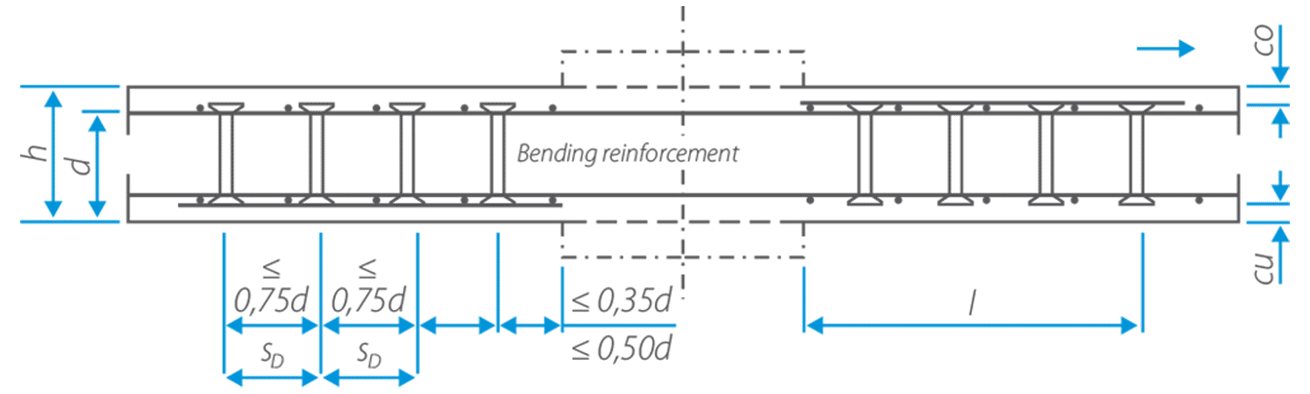

- Top Installation: Assembly profile above the upper reinforcement layer.
